G60 LED Retrofit Bulb from China manufacturer - CNC Lighting Technology Co., Ltd.

Place of Origin:

Zhejiang, China (Mainland)

Product Detail

Model No.: CNC-EH-06

Lens: Frosted or Clear
Dimming: Available
Base: E26, E27, B22
LED Chips: SMD3014 by Epistar
CRI: >75Ra Power: 6W

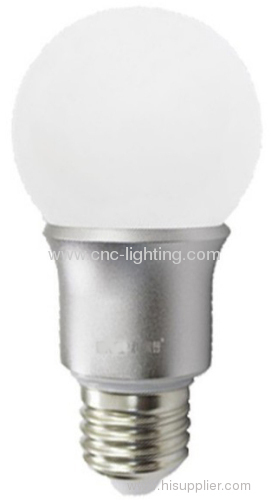

Product name: Dimmable G60 led bulb
Model: CNC-EH-06

----Frosted lens of Dimming G60 LED Retrofit Bulb with 3014 Epistar LEDs over 75Ra

----Clear lens of Dimming G60 LED Retrofit Bulb with 3014 Epistar LEDs over 75Ra

Lens: Frosted or Clear

Dimming: Available

Base: E26, E27, B22

LED Chips: SMD3014 by Epistar

System power	LED power	LED chips	Incandescent bulbreplacement	Luminous Flux	Lumen efficiency	Lux
						@1M	@2M	@3M
6W	5W	60pcs*0.1W	40-60W	530-570Lm	92Lm/W	47Lx	12Lx	5.217Lx

Product sizes: Dia60xH118mm

Rated Voltage: AC100-240V, 50/60Hz

Working current: 27mA

Color Rendering Index: over 75Ra

Power Factor: Over 0.92

Color Temperature: 2800-3200K(warm white),/ 4300-4700K(Natural White),

/5800-6200K(pure white)

Material: Aluminum alloy+glass

Life: 40,000Hours

Beam angle: 300degree

Working circumstance temperature: -25Celsius degree- 45 Celsius degree

Storage temperature: -30 Celsius degree to +50Celsius degree

Physical size:

----Physical size of Dimming G60 LED Retrofit Bulb with 3014 Epistar LEDs over 75Ra

Intensity light distributon curve:

---light distributor curve of Dimming G60 LED Retrofit Bulb with 3014 Epistar LEDs over 75Ra

Lux readings:

---Lux readings of Dimming G60 LED Retrofit Bulb with 3014 Epistar LEDs over 75Ra

Test report:

----Test report of Dimming G60 LED Retrofit Bulb with 3014 Epistar LEDs over 75Raat 3000K

----Test report of Dimming G60 LED Retrofit Bulb with 3014 Epistar LEDs over 75Ra at 4500K

----Test report of Dimming G60 LED Retrofit Bulb with 3014 Epistar LEDs over 75Ra at 6200K

Packing:

Power	Qty/inner box	Inner box size	Qty/ctn	Ctn sizes	Net weight	Gross weight
6W	1pc	66x66x130mm	50pcs	360x360x280mm	8.5Kg	10.0Kg
