24V Constant Current Dimmable Flex LED Strip @96W(1200LEDs SMD3014)

Place of Origin:

Zhejiang, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: CNC-24-L343

Input voltage: 24VDC

Power(W/5W): 96w

Cuttable unit: 6LEDs

dimming methord: PWM

Warranty: 5years

Delivery Date: 10-30 Working days after pa...

Light source: (1200LEDs SMD3014

Max Connect Length: 10M

Lifespan: 30000H

Brightness adjustable: yes

1.Input voltage:24vdc
2.Light source:1200LEDs SMD3014
3.Power (W/5W):96W
4.Max Connect Length:10M
5.Cuttable unit:6LEDs
6.dimming methord:PWM

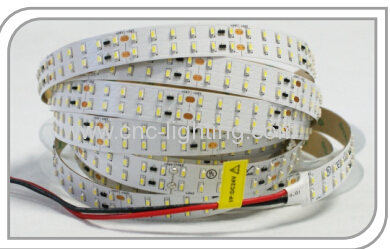

Product name: 24V Constant Current Dimmable Flex LED Strip @96W(1200LEDs SMD3014)

Model: CNC-24-L343

Features:

1 .Super brightness SMD 3014 LEDS;

2 .Cuttable for each group, convenient for using;

3. Longer in connection, uniform brightness;

4. With build-in constant current IC, longer lifespan;

5. DC24V,safe and fit for universal use;

-----24V Constant Current Dimmable Flex LED Strip @96W(1200LEDs SMD3014)

Basic parameters

Input voltage:24vdc

Light source:3014

Power(W/5W):96w

CCT: 2900-6500K

CRI: ra>70

PCB Colour: white

Pcb width: 15mm

Max Connect Length: 10M

Cuttable unit: 6LEDs

Beam angle: 120degree

Lifespan: 30000H

Storage temperature: -40℃ ~ 60℃

Working Temperature: -30~40 ℃

Fixation mode: Clip+screw

Specification Parameters:

Parameter Part NO.	Waterproof Materials	Size(mm)	Lumen	Outlet Way, (single End double ends)	Accessories	IP Rate
24-L343A-B	Silicone tube	W17xH4.0mm	1550lm	Electronic Wire	plug&glue& wire	IP66
24-L343B-B	Silicone groove+ silicone gel	W17xH4.0mm	1600lm	Electronic Wire	wire	IP67
24-L343N-A	Non-waterproof	W15xH1.5mm	1680lm	Electronic Wire	----	IP20

Note: L343-PCB code, the letter behind L343-waterproof types: A-Silicone tube, B- Silicone groove+silicone gel, N-Non- waterproof;

---curve line of 24V Constant Current Dimmable Flex LED Strip @96W(1200LEDs SMD3014)

----performance curve of 24V Constant Current Dimming Flexible LED Strip @96W(1200LEDs SMD3014)

-----accessories of 24V Constant Current Dimming Flexible LED Strip with Silicone tube @96W(1200LEDs SMD3014)

----operation specifiction of 24V Constant Current Dimming cuttable LED Strip with Silicone tube @96W(1200LEDs SMD3014)

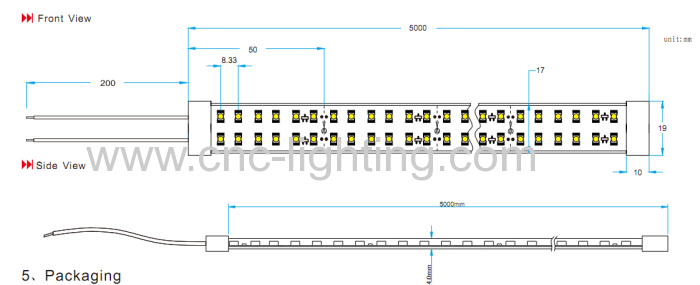

----product size of 24V Constant Current Dimming cuttable LED Strip with Silicone tube @96W(1200LEDs SMD3014)

----accessories of 24V Constant Current Dimming cuttable LED Strip with Silicone groove+ silicone gel @96W(1200LEDs SMD3014)

----product size of 24V Constant Current Dimming flex LED Strip with Silicone groove+ silicone gel @96W(1200LEDs SMD3014)

----operation specification of 24V Constant Current Dimming flex LED Strip with Non-waterproof @96W(1200LEDs SMD3014)

----product size of 24V Constant Current Dimming flexiable LED Strip with Non-waterproof @96W(1200LEDs SMD3014)

packaging:

Park No.	Standard length	Quantity/outer carton	Outer carton size	Weight(Kg)/reel
24-L343A-B	5M	60 Roll	545mm445mm290mm	0.40kg
24-L343B-B	5M	60 Roll	545mm445mm290mm	0.50kg
24-L343N-A	5M	88 Roll	545mm445mm290mm	0.18kg

----packaging of 24V Constant Current Dimmable Flex LED Strip @96W(1200LEDs SMD3014)

----installation picture of 24V Constant Current Dimming Flex LED Strip @96W(1200LEDs SMD3014)

---connection of 24V Constant Current Dimming Flexible LED Strip @96W(1200LEDs SMD3014)

Application

1. Decoration for showcase, ultra-slim light box, hotel;

2. Store and advertising board decoration;

3. Decoration for bridge, road and garden;

4. Decoration for ceiling, furniture,car etc;

5. Flexible for long distant connection, especially suitable for construction which asks for especial lighting;

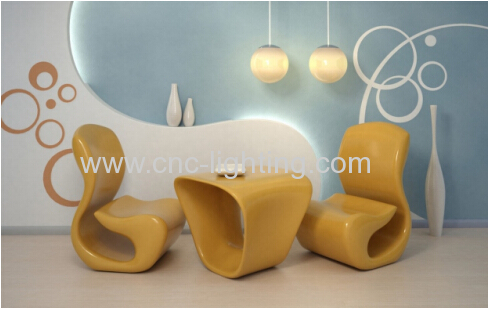

----application of 24V Constant Current Dimming Flexible LED Strip @96W(1200LEDs SMD3014)

Notice

1,Please choose the product with proper IP degrees according to different environments;

2,Don not damage the circuit board line during the installation process;

3,Choose the matched power supply and ensure proper margin for wattage;

4,Turn off the power during the installation process and make sure wiring is correct before power on;

5,It is inappropriate if the connection length is longer than maximum continuous length and it would cause overload, uneven brightness and other damage;

6,Do not stare at the light for a long time as it may cause injury to your eyes;

7,The work like dismantlement and maintenance can only be done by professionals.
