Product Detail

Model No.: CNC-3528-R120A

1. Length: 0.5M and 1.0M
2. the aluminum body can be black and silver
3, fixed type and adjustable type.
4,SMD5050,12-14Lm/LEDs
5. IP60

Product name: IP60 SMD3528 LED Rigid Strip
Model number: CNC-3528-R120A

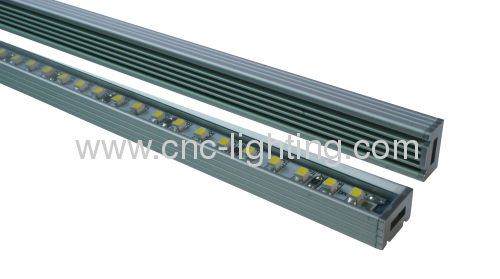

----IP60 SMD3528 Linear Rigid LED Light Bar

Dimensions:

----dimension drawing of IP60 SMD3528 Linear Rigid LED Light Bar

Feature:

1. Length: 1.0M is the standard length, 0.3M, 0.5M, 0.6M, 0.9M, 1.2M can be customized.

2. The colors of light resources can be warm white and cool white, the aluminum body can be black and silver.

3. 0.5M strip can be connected with 9pcs together, and 1.0M strip, 4pcs can be connected one by one at one time.

4. No dark space and with 120degree viewing angle.

5. Accessories and connected wires with a perfect and humanistic way.

6. no ultraviolet and infrared radiation, low heat-release, long lifetime for 50,000 hours.

7. ways to fix: fixed type and adjustable type.

8. the view angle can be rotated with 120 to light a large area, and the lights can be used in different places according to your detailed requirement.

9. sealed way: against dust with PVC.

Applications:

1.cabinet. Undercabinet, bookshelf, cupboard. Showcase, ceiling, the wall

2.bathroom, eaves, landscape, logo, light box, city lighting.

Parameter:

Length	Power	LED qty	LED type	Lumens of each LED @40mA	Voltage	Beam Angle	Working temperature
0.5M	7.2W	60	3528 SMD	12-14Lm	12V	120degree	-20 to +40℃

Adjustable installation diagram:

----adjustable installation diagram of IP60 SMD3528 linear rigid led light bar

Connect drawing:

---connect drawing of IP60 SMD3528 Linear Rigid LED Light Bar

Installation digram:

----installation diagram of IP60 SMD3528 Linear Rigid LED Light Bar

Illustration for connection:

----illustration for connection of IP60 SMD3528 Linear Rigid LED Light Bar

Package:

1.adopt imported high-grade environmental Riley Long thick card as packaging material.

2.professional box lined design, the products are well protected in transportation.

3.neutral screen.

illumination:

---lux reading of IP60 SMD3528 Linear Rigid LED Light Bar at cool white color

---lux reading of IP60 SMD3528 Linear Rigid LED Light Bar at warm white color

Light distributor:

----light distributor of IP60 SMD3528 Linear Rigid LED Light Bar at warm white color

----light distributor of IP60 SMD3528 Linear Rigid LED Light Bar at cool white color

Accessories:

---Accessories of IP60 SMD3528 Linear Rigid LED Light Bar

Note:

1.read the instruction carefully before use.

2.please ensure the label of packing match with actual product.

3.please make sure the power is off before use. Please choose right power supply to match the product.

4.please do not touch the product surface when it is lighting, do not see the light sources by eyes directly.

5.can be used indoors and outdoors.

6.please do not put the product as children toy.
