Enlarge 1x4ft dimmable led panel

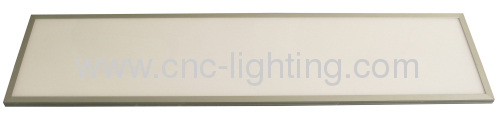

1x4ft dimmable led panel

Price: 70.84~93.9 USD
Payment Terms: T/T,L/C,WU
Place of Origin: Zhejiang, China (Mainland)
inquire skype
Add to My Favorites
HiSupplier Escrow
Share |

Product Detail

Model No.: CNC-CP-02
Production Capacity: 5000pcs
Delivery Date: 10-30 Working days after pa...
thickness: 10.8mm
led chips: SMD3528 by Epistar
CRI: over 80Ra
warranty: 5 years
Means of Transport: Ocean,Air;Express
Packing: 3pcs/21kg/130.5*37.5*26cm/c...
size: 1x4ft
dimmable: triac dimmable
driver: By Eaglerise or Actec, isol...
Installation method: 1) suspending, 2) ceiling s...

44Watt
1x4ft
isolated driver,constant current
0-10V dimmable
embedded or hanging or ceiling surface mount
CRI>80
Rubycon or NCC capacitor

Product name: 1x4ft 300x1200mm 0-10V dimmable led panel fitting
Model: CNC-CP-02
600x600mm PWM dimming led panel light
220-240V 44W 1x4ft 300x1200mm LED panel light (0-10V dimmable)
------0-10V dimmable led panel light in 1x4ft

Dimming option: Triac or 0-10V dimmable
Installation option: 1) suspending, 2) ceiling surface mounted, 3) recessed
Led Chips: Epistar SMD3528
Driver: By Eaglerise or Actec, isolated, NCC(Nippon Chemi-con) or Rubycon capacitors inside, constant current driving.
Color rending Index: CRI over 80Ra
Power factor: PF over 0.95
Warranty: 5Years



Dimension drawing of 1x4ft 0-10V Dimming led panel light

220-240V 44W 1x4ft 300x1200mm LED panel light (0-10V dimmable)
----Drawing dimmensions of 1x4ft 0-10V dimmable led panel light


Size
2x2ft / 595*595mm
1x4ft / 295x1195mm
1x2ft / 295x595mm
1x1ft / 295x295mm
2x4ft / 595x1195mm
Input Voltage
100~240V
220~240V
176~265V
220~240V
100~240V
220~240V
176~265V
Working Current
1500mA
1500mA
1500mA
1500mA
700mA
700mA
1500mA
Watts
34W
44W
55W
44W
19W
16W
55W
LED Qty
312pcs
416pcs
520pcs
416pcs
182pcs
150pcs
520pcs
3000k
2360Lm
3050Lm
3750Lm
2950Lm
1100Lm
850Lm
3750Lm
4000K
2600Lm
3300Lm
4100Lm
3200Lm
1250Lm
970Lm
4100Lm
5700K
2700Lm
3500Lm
4300Lm
3380Lm
1350Lm
1050Lm
4300Lm
Panel thickness: 10.8mm
Life time: 40,000Hours
Ingress protection: IP20
Material: anodized aluminum frame. The front panel board is high translucent acrylic


Luminous intensity distribution curve: SMD3528 Epistar
220-240V 44W 1x4ft 300x1200mm LED panel light (0-10V dimmable)
-----Light distributor of 300x1200mm 1x4ft led panel light (0-10V dimmable)

flux readings at pure white:
220-240V 44W 1x4ft 300x1200mm LED panel light (0-10V dimmable)
-----Lux readings of 1x4ft 0-10V dimmable led panel light

Packing:
100-240V 34W 2x2ft 600x600mm led panel light(0-10V dimmable)
----inner pack of 300x1200mm 1x4ft LED Panel Fitting (0-10V dimmable)

100-240V 34W 2x2ft 600x600mm led panel light(0-10V dimmable)

Panel size
Inner pack sizes
Inner pack qty
Inner pack weight
Carton sizes
Pieces/Ctn
Carton weight
300x300mm/1x1ft
38*36*8
1
2.0
40.5*37.5*26cm
3pcs
7
300x600mm/1x2ft
69*36.5*9
1
3.5
70.5*37.5*26cm
3pcs
11.5
600x600mm/2x2ft
68*68*8
1
6.7
70.5*67.5*26cm
3pcs
23.5
300x1200mm/1x4ft
130*34.5*8
1
6.5
130.5*37.5*26cm
3pcs
21
600x1200mm/2x4ft
128*67*8
1
130.5*67.5*17.5cm
2pcs

Wiring:
100-240V 34W 2x2ft 600x600mm led panel light(0-10V dimmable)



Installation diagram of 1x4ft 0-10V Dimming LED Panel Fitting:
option 1: hanging installation:


100-240V 34W 2x2ft 600x600mm led panel light(0-10V dimmable)
----Accessories for hanging of 300x1200mm 1x4ft LED Panel Fitting (0-10V dimmable)

Warning:
To avoid electric shock, keep power off before installation and maintance.
Installation and maintenance must be done by professional technical person, the non-professional operator are not allowed to take apart the light


100-240V 34W 2x2ft 600x600mm led panel light(0-10V dimmable)
----Back view of 300x1200mm 1x4ft LED Panel Light (0-10V dimmable)


100-240V 34W 2x2ft 600x600mm led panel light(0-10V dimmable)
-----side view of 300x1200mm 1x4ft led panel fitting (0-10V dimmable)
