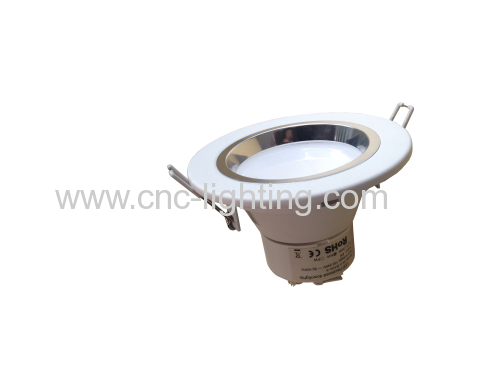

Recessed LED Down light from China manufacturer - CNC Lighting Technology Co., Ltd.

Price:	13.84~14.72 USD
Payment Terms:	T/T,L/C,WU
Place of Origin:	Zhejiang, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: CNC-CH-26-12W

Production Capacity: 5000pcs

LED Chips: San'an 5630LEDs

CRI: over 80Ra

Waterproof: IP40

Warranty: 3Years

Means of Transport: Ocean,Air;Express

Delivery Date: 10-30 Working days after pa...

driver: Isolated driver with consta...

size: 5Inches

Material: Aluminum alloy frame

Isolated driver,
Constant Current output
San'an 5630LED chips
Ra>80
Lumen: 800-848Lm
Beam angle: 90degree

Product name: 5Inches 12W Recessed LED Downlight
Model number: CNC-CH-26-12W

Note:
1, Isolated driver with constant current
2, CRI over 80Ra

5Inches 12W Recessed LED Downlight over 80Ra with 800-850Lm

-----5inches 12W recessed led downlight with isolated driver

-----5inches 12W recessed led downlight with isolated driver

Specifications:

LED Chips: San'an SMD5630LEDs. 0.2W each

Color Temperature(CCT): 2900-3300K(warm white),/ 4000-4500K(Natural White), /6000-6500K(pure white)

Color rendering index: CRI>80

Power factor: PF>0.9

Beam angle: 90degree

Waterproof: IP40

Input voltage: 85-256Vac

Max Lumen efficiency: 65Lm/Watt

Material: Aluminum alloy frame

Working temperature: -20 to 40 degrees Celsius.

Warranty: 3Years
5Inches 12W Recessed LED Downlight over 80Ra with 800-850Lm

Part Number	Power	Product sizes				Hole cutting size	LED Chips	Luminous Flux	Illuminance at 2M(±10%)
Part Number	Power	A	B	C	D	Hole cutting size	LED Chips	Luminous Flux	Illuminance at 2M(±10%)
BA-04-X	8W	φ138mm	98mm	62mm	φ101mm	φ110mm	40PCS*0.2W	500-532Lm	43.69Lx
BA-05-X	12W	φ158mm	98mm	62mm	φ121mm	φ130mm	60PCS*0.2W	801-848Lm	67.56Lx
BA-06-X	16W	φ190mm	112mm	96mm	φ152mm	φ162mm	80PCS*0.2W	1087-1194Lm	91.65Lx
BA-08-X	20W	Φ237mm	112mm	96mm	Φ200mm	Φ210mm	100PCS*0.2W	1468-1614Lm	120.40Lx

Lux Readings: Tested based on Ta=25.3Ceilsius degree, RH=65%, Average datas only
5Inches 12W Recessed LED Downlight over 80Ra with 800-850Lm

----Lux measurement of 12W Recessed LED Downlight at warm white.

5Inches 12W Recessed LED Downlight over 80Ra with 800-850Lm

----Lux measurement of 12W Recessed LED Downlight at natural white.

5Inches 12W Recessed LED Downlight over 80Ra with 800-850Lm

----Lux measurement of 12W Recessed LED Downlight at cool white.

Light intensity distribution curve: Tested based on Ta=25.3Ceilsius degree, RH=65%, Average datas only

5Inches 12W Recessed LED Downlight over 80Ra with 800-850Lm

--------Light Distributor of 12W Recessed LED Downlight at warm white:

5Inches 12W Recessed LED Downlight over 80Ra with 800-850Lm

------Light Distributor of 12W Recessed LED Downlight: at Natural white

5Inches 12W Recessed LED Downlight over 80Ra with 800-850Lm

------Light Distributor of 12W Recessed LED Downlight: at cool white

Package:

7-18W PWM dimming Recessed LED Downlight with Built-In Driver

System Power consumption	Net weight	Volumetric weight	Inner box size	Carton size	Qty /Ctn
8W			150150114mm	780320366mm	30pcs
12W			170170114mm	534360366mm	18pcs
16W			202202128mm	630424408mm	18pcs
20W			249249128mm	770518275mm	12pcs

lIf shipment by airfreight, the weight is measured according to the volumetric weight because the volumetric weight is higher than the practical weight.

lVolumetric weight=Length of carton(CM) x Width of Carton(CM) x Height of Carton/5000

Installation drawing:
7-18W PWM dimming Recessed LED Downlight with Built-In Driver
