PLL 2G7 LED Lamp from China manufacturer - CNC Lighting Technology Co., Ltd.

Price:	6.9~9.39 USD
Payment Terms:	T/T,L/C,WU
Place of Origin:	Zhejiang, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: CNC-PL-03

Production Capacity: 3000pcs per month

Delivery Date: within 7-30 working days

Base: 4pins 2G7

CRI: over 80Ra

Means of Transport: Ocean,Air;Express

Packing: 50pcs/6kg/26*20*16.5 cm/ctn...

LED Chips: SMD5630 by LG

Driver: Built-in, Non-isolated

warranty: 3 years

Base: 4pins 2G7
Power: 6W, 8W
Length: 148mm, 216mm (pins included)
CRI: >80Ra
Driver: Built-in, Non-isolated
Lumen: 80Lm/W
LED: SMD5630 by LG

Product name: 4Pins PLL 2G7 LED Lamp
Model: CNC-PL-03
6-8W 4Pins 2G7 PLL LED Lamps with LG 5630LEDs(>80Ra)

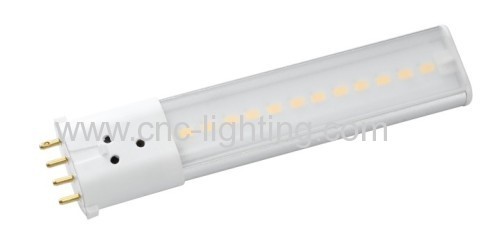

---front view of 4pins PLL 2G7 LED Lamp with LG SMD5630 LEDs

6-8W 4Pins 2G7 PLL LED Lamps with LG 5630LEDs(>80Ra)

----back view of 4pins PLL 2G7 LED Lamp with LG SMD5630 LEDs

Physical sizes:
6-8W 4Pins 2G7 PLL LED Lamps with LG 5630LEDs(>80Ra)

---Phyical sizes of 6W 4Pins PLL 2G7 LED Lamp with LG SMD5630 LED Chips

6-8W 4Pins 2G7 PLL LED Lamps with LG 5630LEDs(>80Ra)

---Phyical sizes of 8W 4Pins PLL 2G7 LED Lamp with LG SMD5630 LED Chips

Specifications:

Power	Led qty	Lamp weight	Tube sizes (pins included)		Lumen		Packing
Power	Led qty	Lamp weight	Tube sizes (pins included)	2800-3200K	3800-4200K	5700-6300K	Pcs/ctn	Carton sizes	Carton weight
6W	12pcs(5630SMD)	100g	148x35x29.75mm	452Lm	468Lm	556Lm	50pcs	260200165 mm	6.00Kg
8W	18pcs(5630SMD)	130g	216x35x29.75mm	590Lm	521Lm	630Lm	50pcs	640220234 mm	7.00Kg

Lamp Base: 2G7 4pins

Driver: Built-in Non-isolated driver with constant current

Lens: Clear or Frosted for option

LED Brand: LG from Korea or Lextar from Taiwan, SMD5630

Lumen efficiency: over 80Lm/W with clear cover

Power Factor: PF over 0.5

Input Voltage: AC85-130V AC180-260V

Color rendering index: CRI over 80Ra
Color Temperature: 2800-3200K(warm white),/ 3800-4200K(Natural White),/5700-6300K(pure white)
beam angle: 140degree

Working temperature: -25 to +45Celsius degree
Lifespan/(hrs): 50,000

Material: AL6063+PC

Applications:

Shopping mall, restaurant, school, hospital, office building etc

Light distributor:
6-8W 4Pins 2G7 PLL LED Lamps with LG 5630LEDs(>80Ra)

---light distributor of 6W 4Pins PLL 2G7 LED Lamps with LG SMD5630 LED chips

6-8W 4Pins 2G7 PLL LED Lamps with LG 5630LEDs(>80Ra)

---light distributor of 8W 4pins PLL 2G7 LED Lamps with LG SMD5630 LED chips

6-8W 4Pins 2G7 PLL LED Lamps with LG 5630LEDs(>80Ra)

---light intensity of 6W 4pins PLL 2G7 LED Lamps with LG SMD5630 LED chips

6-8W 4Pins 2G7 PLL LED Lamps with LG 5630LEDs(>80Ra)

---light intensity of 8W 4pins PLL 2G7 LED Lamps with LG SMD5630 LED chips

Lux readings:
6-8W 4Pins 2G7 PLL LED Lamps with LG 5630LEDs(>80Ra)

---lux readings of 6W 4pins PLL 2G7 LED Lamps with LG SMD5630 LED chips

6-8W 4Pins 2G7 PLL LED Lamps with LG 5630LEDs(>80Ra)

---lux readings of 8W 4pins PLL 2G7 LED Lamps with LG SMD5630 LED chips

Actual test report:

6-8W 4Pins 2G7 PLL LED Lamps with LG 5630LEDs(>80Ra)
