Dimmabel PL LED Tube from China manufacturer - CNC Lighting Technology Co., Ltd.

Price:	13.62~21.51 USD
Payment Terms:	T/T,L/C,WU
Place of Origin:	Zhejiang, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: CNC-PL-02

Production Capacity: 3000pcs per month

Delivery Date: 10-30 Working days after pa...

driver: built-in isolated driver wi...

specialty: compatible with Osrahm elec...

Means of Transport: Ocean,Air;Express

Packing: 25pcs/7kg(15W)/43.5*39.5*18...

led chips: SMD5630 by Epistar or LG

dimmable: triac dimmable

warranty: 3 years

2G11 lamp base
PF: >0.9, CRI: >75
15W, 18W for option
Clear or Frosted lens for option
3years warranty
0-100% Dimmable
Built-in isolated driver

Product name: 15-18W Replacement PL led tube

Model: CNC-PL-02

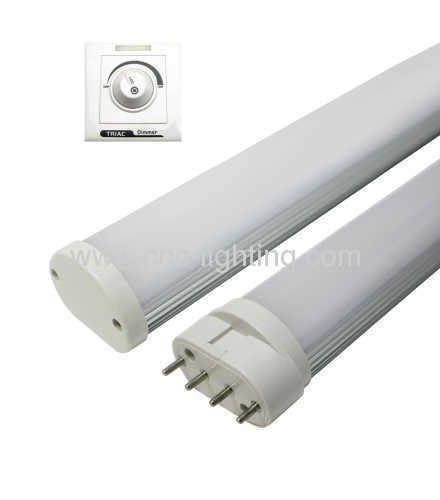

------front view of 15W replacement PL led tube with 2G11 base

------back view of 15W replacement PL led tube with 2G11 base

Specifications:

Dimming: 0-100% triac dimmable by normal switch

Driver: Built-in isolated driver with constant current

Lamp Base: 2G11

Lens: Clear or Frosted for option

LED Brand: LG or Epistar, SMD5630

Input Voltage: 100-240V AC

Power Factor: PF over 0.92

Lumen efficiency: over 95Lm/W with clear cover

Color rendering index: CRI over 75Ra
Color Temperature: 2800-3200K(warm white),/ 4300-4700K(Natural White),/5800-6200K(pure white)
beam angle: 120degree

Working temperature: -25 to +45Celsius degree
Lifespan/(hrs): 50,000

Material: AL6063+PC

Power	Led qty	Tube sizes (pins included)	Lumen	Packing
Power	Led qty	Tube sizes (pins included)	Lumen	Pcs/ctn	Carton sizes	Carton weight
15W	60pcs(5630SMD)	42.5x33x417mm	1310-1540lm	25pcs	435395185 mm	7.00Kg
18W	68pcs(5630SMD)	42.5x33x542mm	1570-1850lm	25pcs	640215240 mm	8.10Kg

Product sizes
15W 2G11 led lamp
0-100% Dimmable 2G11 PL LED Tube with Epistar 5630LEDs

----sizes of 15W 2G11 led lamp

18W 2G11 LED Lamp with 150LEDs
0-100% Dimmable 2G11 PL LED Tube with Epistar 5630LEDs

----sizes of 18W 2G11 LED Lamp with 150Leds

Luminous intensity distributor of this Retrofit PL SMD LED TUBE:
0-100% Dimmable 2G11 PL LED Tube with Epistar 5630LEDs

---Luminous intensity distributor of 15W PLL 2G11 LED Tube

0-100% Dimmable 2G11 PL LED Tube with Epistar 5630LEDs

Luminous intensity distributor of 18W PLL 2G11 LED Tube

Lux Readings of this PLL 2G11 LED Lamp

0-100% Dimmable 2G11 PL LED Tube with Epistar 5630LEDs

Lux readings at different height of 15W PLL 2G11 LED Tube

0-100% Dimmable 2G11 PL LED Tube with Epistar 5630LEDs

Lux readings at different height of 18W PLL 2G11 LED Tube

Plane Isolux diagram of this PLL 2G11 LED Tube

0-100% Dimmable 2G11 PL LED Tube with Epistar 5630LEDs
