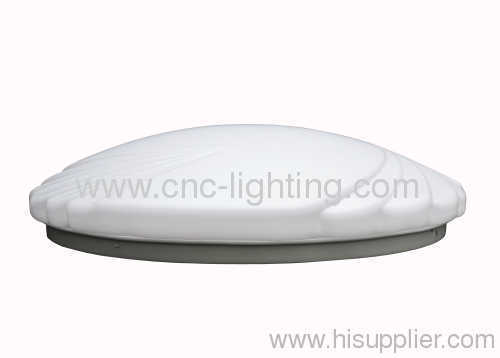

Product name: pendant led ceiling light with built-in driver

Model: CNC-CH-06

---16-27W Pendant LED Ceiling Light with built-in driver and Seoul 5630 LED Chips

Features

1) Built-in driver, low voltage, constant current output

20 CRI over 80Ra

3) Using super bright LED chips by Seoul, SMD5630

4) The base plate is made of high-purity aluminum after fine finishing. The cover made of high translucent acrylic

Specifications:

LED Chips: Seoul, SMD5630

Color Rendering Index: over 80Ra

Input voltage: 220-240V AC

Working current: 700mA

Working Temperature: -20 to +40 Celsius degree

Protection: IP20

Life span: 40,000Hours

Physical sizes:

---physical sizes of 16-27W pendant led ceiling light

Light Distributor Curve:
---16W, Dia270*H95mm

---light distributor curve of 16W pendant led ceiling light

---16W, Dia295*H100mm


---light distributor curve of 16W pendant led ceiling light

---18W

---light distributor curve of 18W pendant led ceiling light

---27W

---light distributor curve of 27W pendant led ceiling light

Lux readings:
---16W, Dia270*H95mm


----lux readings of 16W pendant led ceiling light

---16W, Dia295*H100mm

----lux readings of 16W pendant led ceiling light

---18W


----lux readings of 18W pendant led ceiling light

---27W


----lux readings of 27W pendant led ceiling light

Installation:


---Installation of 16-27W surface mount led ceiling light

Packing:

----Packing Method of 16-27W flushmount led ceiling light

Notes

1) Do not remold the light or replace components to avoid accident of electric shock or light fixture falling.

2) All the instruction, maintenance, and checking should be operated under professional technical person to avoid any dangers.

3) Please do not install the light in high temperature or humid place.

4) To avoid electric shock, keep power off before installation and maintenance.
