Motion Sensor LED Ceiling Light from China manufacturer

Price:	15.22~42.44 USD
Payment Terms:	T/T,L/C,WU
Place of Origin:	Zhejiang, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: CNC-CH-04-A

Production Capacity: 5000pcs

LED Chips: San'an SMD5630LEDs

CRI: over 80Ra

specialty: microwave sensor for 26W

warranty: 3 years

Means of Transport: Ocean,Air;Express

Delivery Date: 10-30 Working days after pa...

Power supply: built-in driver

Diameter: 260mm,326mm,395mm

IP rating: IP40 or IP65 for option

PIR Sensor available for 26W.
Diameter: 260mm,326mm,395mm
Power: 13W,19W,26W
5630 LED Chips
CRI>80
Built-in Driver
70Lm/W

Product name: 11-15Inches Surface Mount Ceiling LED Light

Model number: CNC-CH-04-A
11-17Inches PWM Dimmable LED Ceiling Light

Note:
1) This Ceiling LED Light have Microwave sensor version for 26W if requested
2) base color finish: white, bronze or satin finish

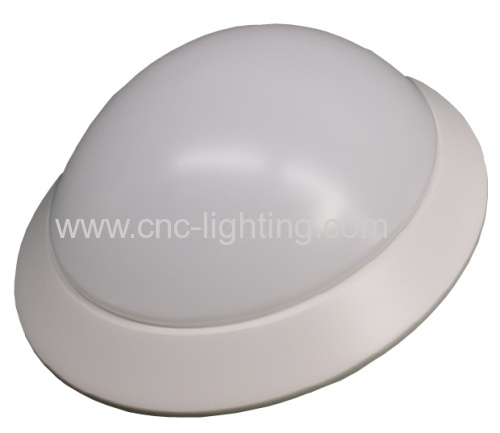

----11-15Inches Surface Mount Ceiling LED Light

11-17Inches Surface Mount LED Ceiling Light with built-in driver and Samsung 5630 LED Chips
----Back view of this Surface Mount LED Ceiling Light

Main features:

CNC Smart Ceiling Light is a decorative surface luminaire using high quality 0.5W SMD LEDs as lighting source and high frequency driver in all models, suitable for wall and ceiling mounting.

The aluminum base is supplied complete in a variety of finishes. The diffuser is attached using a twist and lock type, made by a high grade of PMMA that meets the IK 08 5J standard.

Sizes:
11-15Inches Surface Mount LED Ceiling Light with built-in driver

Size		System Power consumption	LED Qty/Type	Working current	Lumen	Lux at 2M (±5%)
A	B	System Power consumption	LED Qty/Type	Working current	Lumen	Lux at 2M (±5%)
260mm(11 inches)	96mm	13W	24pcs*SMD5630	290mA	675-825Lm	36Lx
326mm(13 inches)	98mm	19W	36pcs*SMD5630	430mA	1080-1320Lm	60Lx
395mm(15 inches)	113mm	26W	48pcs*SMD5630	580mA	1485-1815Lm	82Lx

lIf shipment by airfreight, the weight is measured according to the volumetric weight because the volumetric weight is higher than the practical weight.

lVolumetric weight=Length of carton(CM) x Width of Carton(CM) x Height of Carton/5000

Mechanical characteristics:

Material: copper PCB, aluminum base, PMMA cover.

White or satin finish base available.

Working temperature: 55 degrees Celsius at room temperature 25 degree Celsius.

Ambient temperature: -25 to 55 degrees Celsius.

Specifications:

LED Chips: San'an SMD5630LEDs. 0.5W each (placed in the edge of the plate)

Power supply: built-in

Color rendering index: CRI>80

Power factor: PF>0.9

Beam angle: 120degree

Color temperature: 2800-3300K, 4000-4500K, 6000-6500K

Waterproof: IP20

Input voltage: 100-240Vac

Max Lumen efficiency: 70Lm/Watt

Warranty: 3Years

Installation steps:
11-15Inches Surface Mount LED Ceiling Light with built-in driver
----installation steps of 11-15inches surface mount ceiling led lights

Package:

Size	System Power consumption	Net weight	Inner box size	Carton size	Qty /Ctn	Gross weigh/ctn	Volumetric weight/ctn
Dia260xH96mm (11 inches)	13W	450g	32x10.7x32cm	66x55x34cm	10	9.18Kg	24.7Kg
Dia326xH98mm (13 inches)	19W	730g	38x11x38cm	78x57x40cm	10	12.72Kg	35.6Kg
Dia395xH113mm (15 inches)	26W	890g	44x12x44cm	62x46x46cm	5	8.44Kg	26.3Kg

lIf shipment by airfreight, the weight is measured according to the volumetric weight because the volumetric weight is higher than the practical weight.

lVolumetric weight=Length of carton(CM) x Width of Carton(CM) x Height of Carton/5000

Light Intensity Distribution curve
11-15Inches Surface Mount LED Ceiling Light with built-in driver
----light distributor of 13W 11inches led ceiling light

----light distributor curve of 19W 13inches led ceiling light

----light intensity distributor curve of 26W 15inches led ceiling light with built-in photocell

Lux measurement at different height:
11-15Inches Surface Mount LED Ceiling Light with built-in driver
----lux measurement of 13W 11inches led ceiling light

----lux measurement of 19W 13inches led ceiling light

----lux measurement of 26W 15inches led ceiling light with built-in photocell

How LED Chips placed:
26W led ceiling light with built-in motion sensor (SMD5630)
----Side-emitting design of 26W led ceiling light with built-in motion sensor (SMD5630)

Base color option:

----White base of surface mount led ceiling light with built-in driver (SMD5630)

----Satin finished base of surface mount led ceiling light with built-in driver (SMD5630)

----Bronze finished base of surface mount led ceiling light with built-in driver (SMD5630)

Application:

----Application of 11-15inches surface mount ceiling led light
